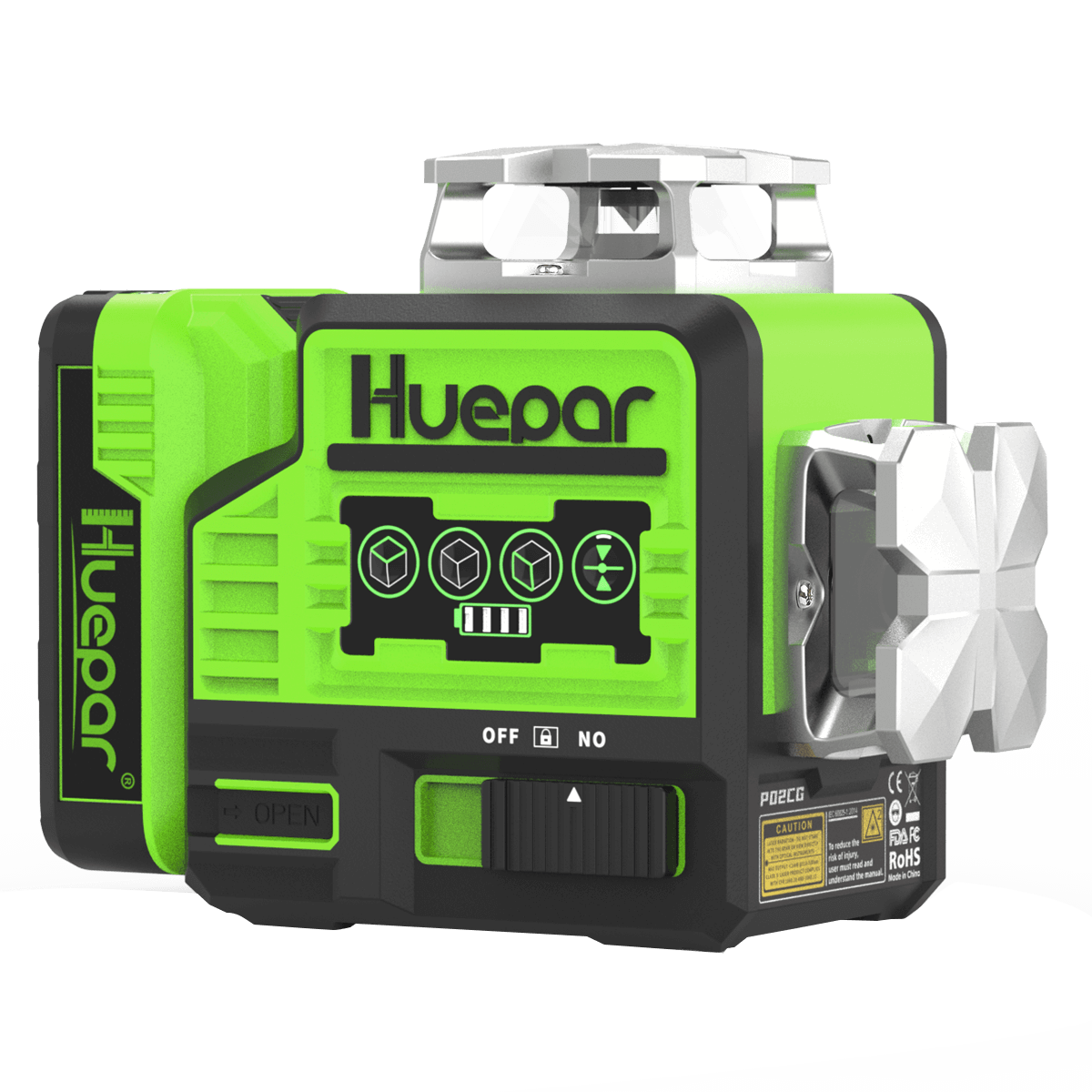

Huepar P02CG Nivel láser
Huepar P02CG Nivel láser
Huepar P02CG Nivel láser
Impuestos incluidos, gastos de envío calculados en la caja.
Huepar TPD14 - Láser autonivelant nivel de luz láser trípode ajustable 143cm
Seleccionar opción
Añadir accesorios superiores
Huepar LR8RG - Detector láser/Receptor láser de línea
Huepar TPD14 - Láser autonivelant nivel de luz láser trípode ajustable 143cm
Huepar LP36 - Poste Telescópico Láser 3,7m
Ampliación de la garantía ampliada?
35 en existencias
No se pudo cargar la disponibilidad de retiro
Pague con facilidad
Entrega de confianza con DPD/DHL/Correios/FedEx
-
Ordered
- - -
Order Ready
- - -
Delivered
Accessories Guides
Receptor láser de línea Huepar
El LR5RG / LR6RG es un detector láser compatible con la mayoría de los niveles láser de Huepar en Modo Pulso. Detecta los láseres que son de color rojo o verde de hasta 200 pies de distancia.
Productos principales: LR5RG / LR6RG/LR8RG
Huepar Tripodes
Fabricado en aleación de aluminio, proporciona un soporte estable. La capacidad de carga máxima alcanza los 10 kg/22 lb, compatible con la mayoría de herramientas de medición.
Productos principales: LP36/M3Y/TPD05/TPD14/TPD16
Adaptador láser Huepar
El adaptador AT2 puede conectarse a cualquier dispositivo que disponga de rosca macho, así como al nivel láser Huepar, 622CG/R, 621CG/R, 8211G, 8300G, 902CG, 901CG, 9011G, 9211G/R, GF360G/R,Box-1G/R.
El adaptador AT3 puede conectarse a cualquier dispositivo que disponga de rosca macho de 5/8" o 1/4", así como a los niveles láser Huepar 603CG/R, GF360G/R, 621CG/R, 622CG/R, 9211G, 8211G, 8300G, 902CG, 901CG, 9011G, 9211G/R, GF360G/R, Box-1G/R, B21CG/B02CG/B03CG, NT411G, LS41G.
Soporte magnético Huepar
Este pequeño accesorio elevar el haz a su altura de referencia exacta deseada. TPR de goma blanda en todos los lados protege el nivel de resistente a los golpes en cierta medida.
Productos principales: PV3/PV5/PV7/PV11+/PV15
Huepar Care
Al adquirir esta garantía ampliada de un año, su Nivel láser puede disfrutar de un total de 4 años de servicio de garantía.
1. Este producto (Huepar Care) es un producto de servicio especial y no puede devolverse.
2. Válido durante un año a partir de la fecha de compra.
3. El servicio incluye Sustitución gratuita de accesorios como ventanas láser, cargadores, baterías, etc, y otros daños accidentales.
4. Restringido a pedidos de huepar.com.
5. Huepar oficial tiene el derecho final de interpretar esto.
Visión general
| Laser Beam Supplier | Osram |
|---|---|
| Laser Beam Color | Green |
| Laser Lines | 2 x 360° |
| Laser Class | Class 2 (IEC/EN60825-1/2014) |
| Laser Wavelength | Wavelength 510-530nm |
| Laser Accuracy | ±3mm/10m (±1/9 in. at 33 ft) |
| Leveling / Compensation Range | 3°±1° |
| Self-leveling Time | ≤ 4 seconds |
| Working Range (60-100 LUX) | ≤20m/65ft |
| Working Range with Detector | ≤40m/130ft |
| Power Source |
Li-ion Battery 11.1V 2600mAh - |
| Working Time | 11 hrs |
| Charging Time |
4 hrs |
| Mount Size | 1/4''-20 5/8''-11 |
| IP Rating | IP54 |
| Working Temperature | -10℃ ~ 50℃ / 14℉ ~ 122℉ |
| Storage Temperature | -20℃ ~ 70℃ / -4℉ ~ 158℉ |
| Laser Beam Supplier | Osram |
|---|---|
| Laser Beam Color | Green |
| Laser Lines | 2 x 360° |
| Laser Class | Class 2 (IEC/EN60825-1/2014) |
| Laser Wavelength | Wavelength 510-530nm |
| Laser Accuracy | ±3mm/10m (±1/9 in. at 33 ft) |
| Leveling / Compensation Range | 3°±1° |
| Self-leveling Time | ≤ 4 seconds |
| Working Range (60-100 LUX) | ≤20m/65ft |
| Working Range with Detector | ≤40m/130ft |
| Power Source |
Li-ion Battery 11.1V 2600mAh - |
| Working Time | 11 hrs |
| Charging Time | 4 hrs |
| Mount Size | 1/4''-20 5/8''-11 |
| IP Rating | IP54 |
| Working Temperature | -10℃ ~ 50℃ / 14℉ ~ 122℉ |
| Storage Temperature | -20℃ ~ 70℃ / -4℉ ~ 158℉ |
- BLUETOOTH TECH & HIGH VISIBILITY: Bluetooth connectivity enables to control ON/OFF the pulse mode and select the laser planes with Huepar App or remote control. This self-leveling laser level adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. The green beam is twice bright as the red laser with a working range up to 130 feet of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode helps extend the laser range up to 200ft .
- LARGE CAPACITY LI-ION BATTERY&TYPE-C PORT: Huepar P02CG Laser Level adopted 10.8V / 2600mAh Li-ion battery and provides 10 hours running time.The Li-ion Battery can be charged separately and can be quickly released and installed for rasy use. The four power indicator on the machine allow users to know the charging status. The Li-ion battery pack With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.
- 2x360° FULL LAYOUT LASER TOOL: Huepar Laser Level have one horizontal 360° plane, one vertical 360° planes, which can cover the floor, walls and ceiling all around the room. Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.Unlock the pendulum, the laser level will self-level within 4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
- MAGNETIC BRACKET&MOUNTING THREADS: This green line laser offers 1/4"-20 and 5/8"-11 mounting threads for being fixed on tripod or magnetic bracket. The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications and can be rotated to the required angle. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads. Metal laser window design withstands tough worksite conditions.
- WATERPROOF & WARRANTY: IP54 waterproof design protects the unit from water splashes, dust and construction debris. The kit has a hard carry case for much more convenience to carry and store the laser tool. We provide a 24-Month after-sale service, lifetime technical support. Pleasecontact us freely if you have any concerns.You will get: 1x Laser level, 1x Li-ion battery,1x Magnetic bracket,1xPortable Bag,1x Laser Target Plate,1x Charger
Huepar P02CG 12 Lines Green Laser Level Specifications:
- Laser Class:Class 2 (IEC/EN60825-1/2014), <1mW power output
- Laser Wavelength:505-520nm
- Horizontal/Vertical Accuracy:±1/9 inch at 33Ft.
- Leveling/Compensation Range:±4°
- Working Distance (Line) 130Ft (100 LUX), 200Ft.
- with Huepar Receiver LR-5RG/LR-6RG
- Operating Time:With Li-ion Battery: 10 hours with all laser beams on
- Power Source :10.8V / 2600mAh Li-ion battery
- Package:Carrying Bag
The App&remote control can switch ON/OFF the pulse mode, select the laser planes
Self-leveling mode:
When the pendulum slides to the“ ON” position, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4°.
Manual mode:
When the pendulum is in the middle position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.
Pulse Mode
After power ON, short press pulse mode button to switch ON/OFF the pulse mode.Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver.
It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.
Note: Keep the pulse mode on when using with a receiver.
Wide Application & Easy to Install
1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.
1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole and the laser line can be projected at any position or angle, which is very convenient for your work.
Large capacity Li-ion battery
10.8V / 2600mAh Li-ion battery and provides 10 hours of running time.
The Li-ion battery pack can be quick to release and install and is very easy to use. The Li-ion Battery can be charged separately and the four power indicators on the battery allow users to know the charging status.
Metal laser window
Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver.
The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.
Package Contents:
1 x Huepar P02CG Cross Line Laser Level
1 x Rechargeable Li-ion Battery
1 x Power Adapter
1 x Type-C cord
1 x Magnetic Bracket
1 x Laser Target Plate
1 x Carrying cloth bag
1 x User Manual
Apoyado Por
Todos los botones se prueban para garantizar un funcionamiento adecuado.
El interruptor se prueba repetidamente para asegurar que la máquina funcione de manera estable.
Asegúrese de que la interfaz de carga funcione correctamente y no esté suelta.
Prueba de envejecimiento del tubo láser para asegurar que no haya atenuación del brillo.
A prueba de agua y polvo, asegurando un uso normal en ambientes polvorientos.
Simula caídas naturales manteniendo la precisión.
Simula entornos de transporte complejos para asegurar que la precisión no cambie.
Asegúrese de que el dispositivo pueda funcionar normalmente entre -10℃ y 50℃.
Calidad Garantizada por Pruebas Profesionales
Cada producto pasa por 8 rigurosos procesos de inspección antes de ser entregado a usted para garantizar que reciba productos de calidad constante.
